支持板子 BK7236

安全启动与升级

本工程中于示例安全启动，安全升级。

BK7236 安全功能还在开发与完善中，请注意下述限制

  • 本工程仅支持在 8M FLASH 上运行。
  • 构建生成的 otp_efuse_config.json 仅使能安全启动及 FLASH AES 加密功能，您可通过 EFUSE 使能更多安全特性。
  • 示例日志中，BL1/BL2 以及安全世界（TF-M）开启了部分日志，您可选择通过 EFUSE 或者编译选项关闭。

如何使用工程

硬件要求

8MB FLASH 的 BK7236 开发板。

编译

编译命令

在 Armino 根目录下输入下述命令进行编译：

make bk7236 PROJECT=security/secureboot APP_VERSION="v1.0"

工具链安装等准备工作请参考快速入门。

生成不同版本号

如果您想运行安全升级，建议使用不同的 APP_VERSION 编译两次，例如：

  • 首次编译时，APP_VERSION="v1.0"，生成的 all-app.bin 用于烧录。
  • 第二次编译时，APP_VERSION="v2.0"，生成的 ota.bin 用于升级。

通过检查启动日志中 APP Version 就可以判断当前运行的版本。也可通过打印时间判断使用的版本:

bk_init:I(0):armino app init: Jul 21 2023 10:12:47
bk_init:I(2):APP Version: v1.0

配置安全计数器

可通过工程下的 ota.csv 中的 app_security_counter 来配置安全计数器，它用于防止升级时版本降级。 要注意 ota.csv 中 app_security_counter 不能小于 BK7236 开发板上当前运行程序的 app_security_counter 值， 否则无法升级成功。如果开发版本上从未运行过安全启动程序，则 app_security_counter 值应该为 0。

关于 app_security_counter 可参考 安全配置

配置 BL2 日志级别

可通过工程下 config/bk7236/config 修改 CONFIG_TFM_BL2_LOG_LEVEL 来配置 BL2 日志级别。

连接 UART

UART0 用于 BKFIL 进行烧录，非安全世界的日志显示以及以及 CLI 命令输入。 UART1 用于安全世界的日志显示。

烧录 all-app.bin

将 Armino/build/secureboot/bk7236/all-app.bin 使用 BKFIL 烧录到板子上。

配置 OTP/EFUSE

将 Armino/build/secureboot/bk7236/otp_efuse_config.json 文件烧录到开发板上，烧录步骤请参考OTP/EFUSE 配置。

重要：请先烧录 all-app.bin，再配置 OTP/EFUSE，配置过程中避免断电

生成的 otp_efuse_config.json

{
    "User_Operate_Enable": "false",
    "Security_Ctrl_Enable": "true",
    "Security_Data_Enable": "true",
    "eFuse_Enable": "false",
    "User_Operate": [],
    "Security_Ctrl": [
        {
            "secure_boot_enable": "0,0,1",
            "secure_boot_debug_disable": "0,3,0",
            "fast_boot_disable": "0,2,0",
            "boot_mode": "0,3,1",
            "secure_boot_clock_select": "0,4,1",
            "random_delay_enable": "0,5,0",
            "direct_jump_enable": "0,6,0",
            "security_boot_critical_error": "0,7,0",
            "attack_nmi_enable": "2,4,0",
            "spi_to_ahb_disable": "2,5,0",
            "auto_reset_enable[0]": "2,6,0",
            "auto_reset_enable[1]": "2,7,0",
            "flash_aes_enable": "3,5,0",
            "spi_download_disable": "3,6,0",
            "swd_disable": "3,7,0"
        }
    ],

    "Security_Data": [
        {
            "name": "bl1_rotpk_hash",
            "mode": "write",
            "permission": "WR",
            "start_addr": "0x4B100528",
            "last_valid_addr": "0x4B100548",
            "byte_len": "0x20",
            "data": null,
            "data_type": "hex",
            "status": "true"
        },
        {
            "name": "bl2_rotpk_hash",
            "mode": "write",
            "permission": "WR",
            "start_addr": "0x4B100548",
            "last_valid_addr": "0x4B100568",
            "byte_len": "0x20",
            "data": "ca68e9b3e991433ca9a6a2d6a74fc9dd5ccf559a4ae179537bde2772e0393ccf",
            "data_type": "hex",
            "status": "true"
        }
    ]
}

安全启动

安全启动 CLI 命令

配置完 OTP/EFUSE 之后，重启开发板即可观察到安全启动流程。

安全启动日志

安全世界日志

I (0) flash: id=0xc84017
I (0) flash: write status reg:38, status_reg_size:1
I (0) flash: write status reg:0, status_reg_size:1
[INF] Starting bootloader
I (0) otp: init
[INF] step#1: open primary/secondary image area
[INF] step#1: determine swap type
[INF] boot_read_sectors 362
[INF] step1: read image header of each slots
[INF] boot_read_image_headers 96
[INF] step1: slot compatible checking
[INF] step1: slot is compatible
[INF] read swap state: flash_off=45000, off=2d7ff0
[INF] read swap info: flash_off=45000, off=2d7fd8
[INF] read copy done: off=2d7fd8
[INF] Primary image: magic=good, swap_type=0x1, copy_done=0x3, image_ok=0x3
[INF] read swap state: flash_off=31d000, off=2d7ff0
[INF] read swap info: flash_off=31d000, off=2d7fd8
[INF] read copy done: off=2d7fd8
[INF] Secondary image: magic=unset, swap_type=0x1, copy_done=0x3, image_ok=0x3
[INF] Boot source: primary slot
[INF] boot_read_image_headers 96
[INF] step1: partial swap was NOT detected
[INF] read swap state: flash_off=45000, off=2d7ff0
[INF] read swap info: flash_off=45000, off=2d7fd8
[INF] read copy done: off=2d7fd8
[INF] read swap state: flash_off=31d000, off=2d7ff0
[INF] read swap info: flash_off=31d000, off=2d7fd8
[INF] read copy done: off=2d7fd8
[INF] Swap type: none
[INF] boot state=1

image calculated hash:
3f 15 52 eb a4 18 9d c5 72 4a 95 ea 50 33 93 ed 81 b9 38 ee cd 7c c3 66 ec fa a2 31 79 af d8 00
[INF] tlv_iter: magic=6908
[INF] tlv_iter: magic is ok
[INF] tlv iter: off=1d4144 len=4 type=50, rc=0
I (0) otp: dump otp, id=14, size=32
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
I (0) otp: read, id=14, out_len=32
[INF] tlv iter: off=1d414c len=5b type=60, rc=0
[INF] tlv iter: off=1d41af len=20 type=10, rc=0
[INF] IMAGE_TLV_SHA256
image tlv hash
3f 15 52 eb a4 18 9d c5 72 4a 95 ea 50 33 93 ed 81 b9 38 ee cd 7c c3 66 ec fa a2 31 79 af d8 00
[INF] Image hash OK
[INF] tlv iter: off=1d41d3 len=5b type=2, rc=0
[INF] IMAGE_TLV_PUBKEY
[INF] find key, image0, key_len=91
Try to find key:
30 59 30 13 06 07 2a 86 48 ce 3d 02 01 06 08 2a 86 48 ce 3d 03 01 07 03 42 00 04 c7 03 95 cd 21
3d a2 e8 6d af 37 34 12 21 2e ae a0 d5 d8 76 68 a7 b5 5e dc c3 fd c1 95 f9 ed 75 f3 5b d3 7b 7a
c7 a0 d0 78 ed cc 96 25 58 36 d7 8e 9c a4 58 01 b8 b8 a7 04 7c 12 d0 3e 0d ff db
Key hash is:
b3 e9 68 ca 3c 43 91 e9 d6 a2 a6 a9 dd c9 4f a7 9a 55 cf 5c 53 79 e1 4a 72 27 de 7b cf 3c 39 e0
I (0) otp: dump otp, id=11, size=32
b3 e9 68 ca 3c 43 91 e9 d6 a2 a6 a9 dd c9 4f a7 9a 55 cf 5c 53 79 e1 4a 72 27 de 7b cf 3c 39 e0
I (0) otp: read, id=11, out_len=32
[INF] Retried key hash len=32

Retrieved key hash is:
b3 e9 68 ca 3c 43 91 e9 d6 a2 a6 a9 dd c9 4f a7 9a 55 cf 5c 53 79 e1 4a 72 27 de 7b cf 3c 39 e0
[INF] Key hash is equal
[INF] tlv iter: off=1d4232 len=47 type=22, rc=0
[INF] verify sig
[INF] tlv iter: off=1d4232 len=47 type=22, rc=1
[INF] tlv_iter: magic=6908
[INF] tlv_iter: magic is ok
I (0) otp: write, id=14, out_len=32
[INF] tlv_iter: magic=6908
[INF] tlv_iter: magic is ok
[INF] Bootloader chainload address offset: 0x45000
[INF] Jumping to the first image slot
Jump to 1st app, msp=0x28000800 vector=0x204ece9
I (0) otp: init
[Sec Thread] Secure image initializing!
TF-M isolation level is:  0x00000002
TF-M FP mode: Hardware
Lazy stacking enabled
Booting TF-M Dev2.0.3+6662014
I (0) flash: id=0xc84017
I (0) flash: write status reg:38, status_reg_s
I (0) flash: write status reg:0, status_reg_s
E (0) otp: otp read stub, id=0
SCB->AIRCR:0xfa056408

非安全世界日志

os:I(0):
os:I(0):mem_type start    end      size
os:I(0):-------- -------- -------- --------
os:I(0):itcm     0x10000000 0x10003c70 15472
os:I(0):dtcm     0x30000000 0x300018f4 6388
os:I(0):ram      0x38010000 0x3807ebf8 453624
os:I(0):non_heap 0x38010000 0x3803f028 192552
os:I(0):iram     0x38010000 0x38010814 2068
os:I(0):data     0x38010814 0x3801b790 44924
os:I(0):bss      0x3801b7a0 0x3803f024 145540
os:I(0):non_cache 0x3802c67c 0x3803f022 76198
os:I(0):heap     0x3803f028 0x3807ebf8 261072
flash:I(0):id=0xc84017
flash:I(0):write status reg:4004, status_reg_size:1
ate enabled is 1
driver_init end
init:I(0):reason - power on
init:I(0):regs - 0, 0, 0
init:I(0):armino rev:
init:I(0):armino soc id:53434647_72360001
init:I(0):trng enable
mailbox:I(0):mailbox_config
mailbox:I(0):bk_mailbox_recv_callback_register
mailbox:I(0):bk_mailbox_recv_callback_register
init:I(0):Intialize random stack guard.
os:I(0):create main, tcb=380408d0, stack=[3803f8a8-380408a8:4096], prio=5
start user app thread.
os:I(0):create app, tcb=38041978, stack=[38040950-38041950:4096], prio=2
os:I(0):os time(0ms).
os:I(0):base aon rtc time: 0:46
os:I(0):create IDLE, tcb=30000000, stack=[3000005c-3000065c:1536], prio=0
os:I(0):create Tmr Svc, tcb=3000065c, stack=[300006b8-30000cb8:1536], prio=5
bk_init:I(0):armino app init: Jul 21 2023 10:12:47
bk_init:I(2):APP Version: v1.0
os:I(4):create media_major_thread, tcb=38042af0, stack=[38041cc8-38042ac8:3584], prio=3
media_app:W(6):media app thread startup complete
media0:I(8):media major thread startup complete
os:I(10):create event, tcb=380434c0, stack=[38042c98-38043498:2048], prio=1
lwip:I(12):init TCP/IP
os:I(16):create tcp/ip, tcb=38043fc8, stack=[380437a0-38043fa0:2048], prio=7
os:I(18):create storage_task_thread, tcb=38045270, stack=[38044648-38045248:3072], prio=3
I (20) wifi: wifi initing
os:I(22):create syswq, tcb=38045808, stack=[380453e0-380457e0:1024], prio=6
I (24) wifid: IP Rev: 802.11ax
I (26) wifid: mm_env_init,interval = 0,bcn_loss_int 0,repeat 0.
I (28) wifid: init td info :61440 pck:3

I (30) cal: get rfcali_mode:1
I (36) cal: cali bias(e),t1:21,t2:2548
I (200) cal: cali bias(e),t1:21,t2:2548
I (200) cal: calibration_main over
I (200) cal: *********** finally result BK7236 **********
I (200) cal: gbias_after_cal        : 0x0
I (204) cal: gtx_q_dc_comp          : 0x7fa
I (208) cal: gtx_i_dc_comp          : 0x80d
I (212) cal: gtx_i_gain_comp        : 0xfff
I (216) cal: gtx_q_gain_comp        : 0xfee
I (220) cal: gtx_phase_comp         : 0x7fe
I (224) cal: gtx_phase_ty2          : 0x800
I (228) cal: gtx_ifilter_corner over: 0x8a
I (232) cal: gtx_qfilter_corner over: 0x88
I (236) cal: const_iqcal_p over     : 0x400
I (240) cal: const_iqcal_idx over   : 0x1d0
I (244) cal: g_rx_dc_gain_tab 0 over: 0x807c807c
I (250) cal: g_rx_dc_gain_tab 1 over: 0x7c7c8078
I (254) cal: g_rx_dc_gain_tab 2 over: 0x7c787878
I (258) cal: g_rx_dc_gain_tab 3 over: 0x78747878
I (262) cal: g_rx_dc_gain_tab 4 over: 0x78707870
I (268) cal: g_rx_dc_gain_tab 5 over: 0x78707870
I (272) cal: g_rx_dc_gain_tab 6 over: 0x79707970
I (276) cal: g_rx_dc_gain_tab 7 over: 0x79717970
I (280) cal: grx_amp_err_wr         : 0x200
I (286) cal: grx_phase_err_wr       : 0x000
I (290) cal: **************************************
I (294) cal: NO TXPWR_TAB_TAB found in flash
I (298) cal: Load default txpwr for b:0x120ff1ec
I (302) cal: Load default txpwr for g:0x120ff222
I (308) cal: fit n20 table with dist:4
I (310) cal: Load default txpwr for n40:0x120ff230
I (316) cal: Load default txpwr for ble:0x120ff1fa
E (320) cal: NO TXID found in flash, use def temp:474
E (324) cal: temp in flash is:474
tempd:I(328):init temperature 474
os:I(332):create tempd, tcb=38046620, stack=[380461f8-380465f8:1024], prio=5
E (338)tempd:I(340):xtal init cal: NO TXID found inal:474, 70, 80
 flash, use lpf i&q:138, 136
E (348) cal: NO TXID found in flash, use def xtal:59
E (352) cal: xtal in flash is:48
I (356) cal: xtal_cali:48
I (358) cal: --init_xtal = 48
I (360) cal: NO TLV tag in flash
gtx_dcorPA=0x6
I (364) cal: pwr_gain_base default=0x19637c00 11b=0x19637c00 11g=0x99637c00 ble=0x99628c00
I (374) cal: -----pwr_gain:40, rate=54, g_idx:40, shift_b:0, shift_g:0
I (380) cal: idx:40=40+(0),r:54,xtal:48,pwr_gain:99637128
os:I(386):create kmsgbk, tcb=38047a88, stack=[38046a60-38047a60:4096], prio=6
os:I(392):create core_thread, tcb=380489a8, stack=[38048180-38048980:2048], prio=7
os:I(400):create rf_arbitrate, tcb=38049368, stack=[38048b40-38049340:2048], prio=8
I (408) coex: coex_init ok
os:I(410):create wpas_thread, tcb=3804a888, stack=[38049860-3804a860:4096], prio=4
I (418) wifi: wifi inited(1) ret(0)
I (420) wifid: trace_mem_apply :lenth 28
I (424) wifid: dbg_mem_apply :lenth 96
I (428) wifid: hal_machw_mem_apply : lenth 228
user app entry(0x0)
gpio:I(436):bk_gpio_driver_init:has inited
os:I(442):create cli, tcb=3804b960, stack=[3804b138-3804b938:2048], prio=5
ATE enabled = 1

安全升级

在安全启动的基础上可以进一步示例安全升级，包括下述几步：

  • 启动 HTTP 服务器
  • 连接路由器
  • 触发升级

启动 HTTP 服务器

使用 HFS(Http File Server) 来启动一个 HTTP 服务器，您也可以使用其他 HTTP 服务器。 将 Armino/build/secureboot/bk7236/ota.bin 拷到 HFS 服务器上，如下图所示:

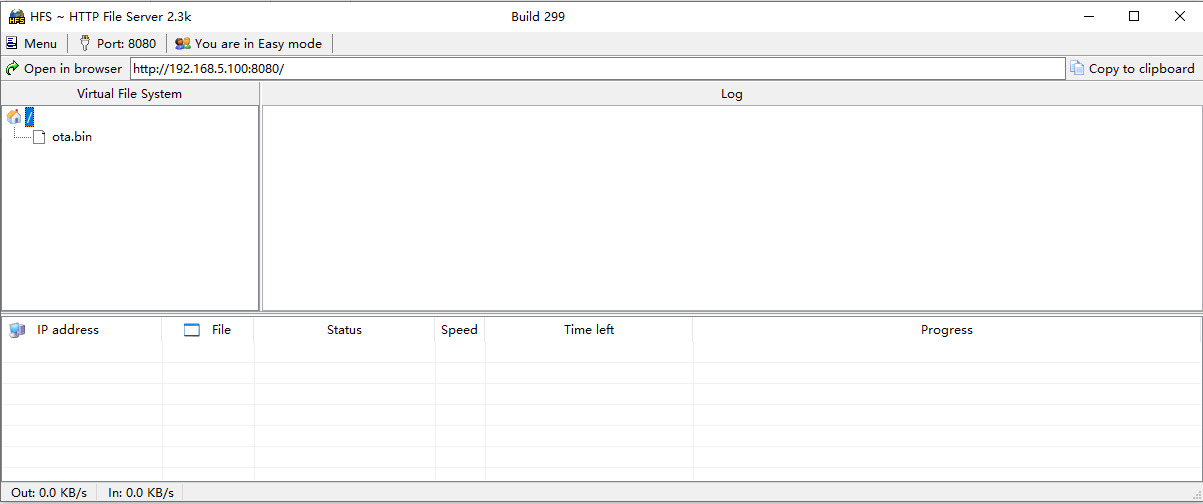

HFS 服务器

连接路由器

测试安全升级时，运行 HTTP 服务器的电脑与开发板需要处于同一局网中。 本例路由器/密码为 Tenda_062C88/1234568，使用下述命令将开发板连接到路由器上:

sta Tenda_062C88 12345678

触发 OTA

使用下述命令运行 OTA:

http_ota http://192.168.5.100:8080/ota.bin

重启

当 OTA 下载完成且 TF-M 对下载的 IMAGE 完整性检查完成之后，手动重启板子，重启后 BL2 对下载的 IMAGE 验签，验签通过了 之后将 IMAGE 搬到主分区。

非安全世界日志

sta Tenda_062C88 12345678

os:I(741246):create shell_handle, tcb=3803fda0, stack=[3804cd30-3804e130:5120], prio=5
I (741246) wifi: ssid:Tenda_062C88 key:12345678
I (741248) wifi: sta configuring
I (741252) wifi: sta disconnecting
lwip:I(741254):sta ip down
I (741258) wpa: cancell scan request timer
I (741262) wifid: sm external auth not in correct state state:0
W (741266) wifid: sm_disconnect_req_handler: reason_code 3, vif type 0, active 1
I (741274) wifid: sm_disconnect_continue: host 1,0.
I (741278) wifid: sm_deauth_send: reason code 3
I (741298) wifid: sm_frame_tx_cfm_handler: success tx, state 10, fctl 0xc0, tx_rlr 0x80800000
I (741298) wifid: sm_disconnect_finish
I (741298) wifid: sm_delete_resources
I (741300) wifid: mm_hw_cfg:msgid = 30,mm = 1,hw = 3
W (741306) wifid: [KW:]mm_set_vif_state,vif = 0,vif_type = 0,is_active = 0
W (741312) wifid: chan_unregister_fix_req: VIF0
W (741318) wifid: chan_ctxt_unlink: CTXT0, VIF0, status=1, nb_vif=0, nb_ctxt=0
W (741324) wifid: chan_ctxt_del: CTXT0
I (741328) wifid: mm_set_idle:req = 1,mm = 1,hw = 3
I (741334) wifid: mm_set_idle:req = 1,mm = 0,hw = 0
I (741338) wifid: me_set_active_cfm_handler: TASK_SM state 10
I (741344) rwnx: disconnect
I (741346) wpa: Event DEAUTH (11) received
I (741350) hitf: del hw key idx=1
I (741354) hitf: del hw key idx=0
I (741356) wpa: State: COMPLETED -> DISCONNECTED
I (741360) wpa: State: DISCONNECTED -> DISCONNECTED
I (741366) wifi: sta disconnected(7)
I (741370) wpa: Event DEAUTH (11) received
I (741374) wifi: sta configured(7)
I (741376) wifi: sta connecting
I (741380) wifi: sta disconnecting
I (741382) wifi: sta disconnected(7)
I (741386) wpa: Setting scan request: 0.000000 sec
I (741390) wifi: sta connected(f)
I (741394) wifi: sta starting
I (741396) wifi: sta already started, ignored!
I (741402) wpa: wpa_supplicant_scan
I (741404) wpa: State: DISCONNECTED -> SCANNING
I (741408) wpa: scan work start, deinit=0
I (741412) wpa: req driver to scan
I (741416) wpa: wpa_driver_scan2: Scan specified BSSID ff:ff:ff:ff:ff:ff
I (741422) hitf: send scan req to driver
I (741426) wifid: ht in scan
W (741430) wifid: [KW:]scanu_start_req:src_id = 14,dur = 0,chan_cnt = 13,ssid_len = 12,ssid = Tenda_062C88,bssid = 0xffff-ffff-ffff
W (741442) wifid: [KW:]scan_start_req,vif = 0,chan_cnt = 13
I (741448) wpa: Event SCAN_STARTED (47) received

#I (741492) wifid: scan_chan_end,scan_idx=0,freq=2412MHz,recv_frame 4

#I (741536) wifid: scan_chan_end,scan_idx=1,freq=2417MHz,recv_frame 5
I (741582) wifid: scan_chan_end,scan_idx=2,freq=2422MHz,recv_frame 5
I (741628) wifid: scan_chan_end,scan_idx=3,freq=2427MHz,recv_frame 7
I (741674) wifid: scan_chan_end,scan_idx=4,freq=2432MHz,recv_frame 14
I (741718) wifid: scan_chan_end,scan_idx=5,freq=2437MHz,recv_frame 20
I (741764) wifid: scan_chan_end,scan_idx=6,freq=2442MHz,recv_frame 23
I (741810) wifid: scan_chan_end,scan_idx=7,freq=2447MHz,recv_frame 25
I (741856) wifid: scan_chan_end,scan_idx=8,freq=2452MHz,recv_frame 28
I (741900) wifid: scan_chan_end,scan_idx=9,freq=2457MHz,recv_frame 29
I (741946) wifid: scan_chan_end,scan_idx=10,freq=2462MHz,recv_frame 36
I (741992) wifid: scan_chan_end,scan_idx=11,freq=2467MHz,recv_frame 37
I (742038) wifid: scan_chan_end,scan_idx=12,freq=2472MHz,recv_frame 40
W (742038) wifid: [KW:]scan_chan_end,scan end
W (742038) wifid: [KW:]scanu_confirm:status=0,req_type=0,upload_cnt=4,recv_cnt=40,time=586752us,result=1
I (742046) wpa: Event SCAN_RESULTS (3) received
I (742050) wpa: Scan completed in 0.598000 seconds
I (742056) hitf: get scan result:1
I (742060) wpa: cipher2security 2 2 16 16
I (742062) wpa: cipher2security 2 2 16 16
I (742066) wpa: wpa_supplicant_connect
I (742070) wpa: cancell scan request timer
I (742074) wpa: State: SCANNING -> ASSOCIATING
I (742078) wpa: wpa_driver_associate: auth_alg 0x1
W (742084) wifid: [KW:]conn vif 0,active:0,vif_type:0,auth:0,state:0.
W (742090) wifid: [KW:]conn bssid 2b50-673-882c,ssid:Tenda_062C88,is encryp:8.
W (742096) wifid: sm_fast_connect start,bcn_len 97
I (742102) wifid: me_check_special_device flag:0
W (742106) wifid: chan_ctxt_add: CTXT1, freq=2472MHz, bw=20MHz, pwr=0dBm
W (742112) wifid: chan_register_fix_req: VIF0, CTXT1, type=3
W (742118) wifid: chan_ctxt_link: CTXT1, VIF0, status=0, nb_vif=0
I (742126) wifid: rc_init: station_id=1 format_mod=0 pre_type=0 short_gi=0 max_bw=0
I (742132) wifid: rc_init: nss_max=0 mcs_max=255 r_idx_min=4 r_idx_max=11 no_samples=8
I (742140) wifid: rc rates:[4] [5] [9] [8] [6] [7] [a] [b]
I (742146) wifid: mm_hw_cfg:msgid = 24,mm = 1,hw = 3
I (742150) wifid: mm_ap_drift: prevent sleep vif_bit 0x4010,ps_bit 0x4,cnt0
I (742158) wifid: mm_compute_ap_drift:tsf_start_local 0x0-2487e157,hal_time 0x24882c59,tsf 0x24882c5a.
I (742168) wifid: mm_hw_cfg:msgid = 22,mm = 1,hw = 3
I (742172) wifid: mm_hw_cfg:msgid = 20,mm = 1,hw = 3
I (742176) wifid: mm_set_idle:req = 0,mm = 1,hw = 3
I (742182) wifid: me_set_active_cfm_handler: TASK_SM state 4
W (742186) wifid: [KW:]sm_auth_send:seq 1, txtype 1, auth_type 0, seq 88
I (742194) wifid: sm_frame_tx_cfm_handler: success tx, state 5, fctl 0xb0, tx_rlr 0x80800000
I (742202) wifid: [KW:]sm_auth_handler: status code 0
W (742206) wifid: me_comp_int,listen_int = 20,dtim = 1,listen_set = 0
I (742220) wifid: sm_frame_tx_cfm_handler: success tx, state 8, fctl 0x0, tx_rlr 0x80800000
W (742232) wifid: [KW:]sm_assoc_rsp_handler: status code 0
W (742232) wifid: sm_assoc_done: aid 2
I (742232) wifid: mm_hw_cfg:msgid = 30,mm = 1,hw = 3
W (742234) wifid: [KW:]mm_set_vif_state,vif = 0,vif_type = 0,is_active = 1
W (742242) wifid: chan_bcn_detect_start: CTXT1, VIF0
W (742246) wifid: chan_register_once_req: VIF0, type=21, dur=102400us, freq=2472MHz, pwr=0dBm
I (742254) wifid: VIF-0 Connection status 0
I (742258) wifid: sm_check_keepa :28.
W (742262) wifid: chan_update_req: VIF0, type=1
I (742268) wifid: mm_set_ps_op: listen_interval = 20
I (742272) rwnx: connect ok
I (742274) wpa: Not associated - Delay processing of received EAPOL frame (state=ASSOCIATING bssid=00:00:00:00:00:00)
I (742286) wpa: Event ASSOC (0) received
I (742290) wpa: State: ASSOCIATING -> ASSOCIATED
I (742294) wpa: cancell scan request timer
I (742298) wpa: State: ASSOCIATED -> 4WAY_HANDSHAKE
I (742304) wpa: WPA: TK 1b40e930b38db7a41559e8f15ee648ec
I (742320) wpa: State: 4WAY_HANDSHAKE -> 4WAY_HANDSHAKE
I (742332) hitf: add CCMP
I (742332) hitf: add sta_mgmt_get_sta
I (742332) hitf: add key, sta=1, vif=0, key=0
I (742332) wifid: sta_mgmt_add_key: cipher 2
I (742334) hitf: add hw key idx=9
I (742338) wpa: State: 4WAY_HANDSHAKE -> GROUP_HANDSHAKE
I (742342) wpa: WPA: GTK 75ef3cebe0701cec81fcdb3cbf14105b
I (742348) hitf: adW (742350) wifid: chan_update_req: VIF0, type=5
I (742354) wifid: mm_ap_drift: prevent sleep vif_bit 0x4011,ps_bit 0x200,cnt0
I (742362) wifid: mm_compute_ap_drift:tsf_start_local 0x0-248b0150,hal_time 0x248b2717,tsf 0x248b2716.
W (742370) wifid: mm_tbtt_compute:frame 1304,tim 744,tim_len 6,after_tim 110
I (742378) wifid: mm_tbtt_compute:rx_tsfhi 0x0,rx_tsflo 0x248b04e8,hal_time 0x248b64a1,tsf 0x248b64a1.
d CCMP
I (742390) hitf: add is_broadcast_ether_addr
I (742392) hitf: add key, sta=255, vif=0, key=1
I (742396) hitf: add hw key idx=1
I (742400) wpa: State: GROUP_HANDSHAKE -> COMPLETED
W (742404) wifid: [KW:]ctrl_port_hdl:1
lwip:I(742408):sta ip start
lwip:I(742410):configuring interface sta (with DHCP client)
lwip:I(742416):dhcp status timer:20000
[KW:]dhcp_discover()
cli:I(742422):BK STA connected Tenda_062C88
I (742460) wifid: mm_ap_drift: prevent sleep vif_bit 0x5011,ps_bit 0x0,cnt1
I (742460) wifid: mm_compute_ap_drift:tsf_start_local 0x0-248c9739,hal_time 0x248c9c2c,tsf 0x248c9c2e.
I (742566) wifid: mm_ap_drift: prevent sleep vif_bit 0x4011,ps_bit 0x0,cnt2
I (742566) wifid: mm_compute_ap_drift:tsf_start_local 0x0-248e2151,hal_time 0x248e261c,tsf 0x248e261c.
I (742570) wifid: mm_ap_drift: clear ps, vif_bit 0x11,ps_bit 0x0
[KW:]dhcp_discover()
[KW:]DHCP_OFFER received in DHCP_STATE_SELECTING state
[KW:]dhcp_select(netif=0x3801f640) en   1
[KW:]DHCP_ACK received
lwip:I(744510):ip_addr: 192.168.5.122
lwip:I(744510):STA assoc delta:898, eapol delta:114, dhcp delta:2102, total:3114
W (744512) wifid: [KW:]sm dhcp done vif:0
W (744514) wifid: chan_update_req: VIF0, type=2
cli:I(744520):BK STA got ip

#
#http_ota http://192.168.5.100:8080/ota.bin

os:I(752292):create shell_handle, tcb=3803fda0, stack=[3804c340-3804d740:5120], prio=5
cli:I(752292):http_ota_download :0x12161285  offset      size    fwu_id
    3000      1000  4
   34000      1000  5
    4000     41000  6
   35000     10000  7
  31d000    2d8000  3
downloading OTA global header...
crc 1863c392, version 0, header_len 20, image_num 1
downloading OTA image header...
image[0], image_len=2d8000, image_offset=40, flash_offset=31d000
downloading OTA image0, expected data len=2d8000...
downloaded OTA image0

cli:I(762780):sucess.
checking fwu image3...
query status -132
check fwu image3 success
reboot

重启后安全世界日志

下载完成后，重启开发板，BL2 会对下载的 IMAGE 进行验签，验签通过之后交换到主分区，可以观察到 BL2 会打出 Swap type: test 与 Starting swap using move algorithm，表示使用

完整日志如下:

I (0) otp: init
[INF] Primary image: magic=good, swap_type=0x1, copy_done=0x3, image_ok=0x1
[INF] Secondary image: magic=good, swap_type=0x1, copy_done=0x3, image_ok=0x3
[INF] Boot source: none
[INF] Swap type: test
I (0) otp: dump otp, id=14, size=32
I (0) otp: read, id=14, out_len=32
I (0) otp: dump otp, id=11, size=32
I (0) otp: read, id=11, out_len=32
[INF] Starting swap using move algorithm.
I (0) otp: dump otp, id=14, size=32
I (0) otp: read, id=14, out_len=32
I (0) otp: dump otp, id=11, size=32
I (0) otp: read, id=11, out_len=32

重启后非安全世界日志

与升级前启动日志相似，但编译时间与版本号发生变化

bk_init:I(0):armino app init: Jul 21 2023 10:18:48
bk_init:I(2):APP Version: v2.0
